DA665-IP66-4: IP66 Weather-resistant 4 x 1A 12V DC Multi-purpose 4A power supply
These switched-mode power supplies can accept a wide range of mains voltage from as little as 90V to 270V with frequencies of 47 to 63Hz. These units will provide four regulated outputs of 12V DC 1A.
Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts. These units are intended for use with CCTV cameras. However, they are multi-purpose and can be used in a range of security applications.
Up to eight individually fused outputs
The DA665 range of power supplies are available within mild steel enclosures, IP66 Weather-resistant or open-frame plate-mounted. The IP66 weather-resistant cased output options include one, two, four or eight individually fused outputs.
- DA665-IP66-1: One 12V 4A DC individually fused output
- DA665-IP66-2: Two 12V 2A DC individually fused output
- DA665-IP66-4: Four 12V 1A DC individually fused output
- DA665-IP66-8: Eight 12V 500mA DC individually fused output

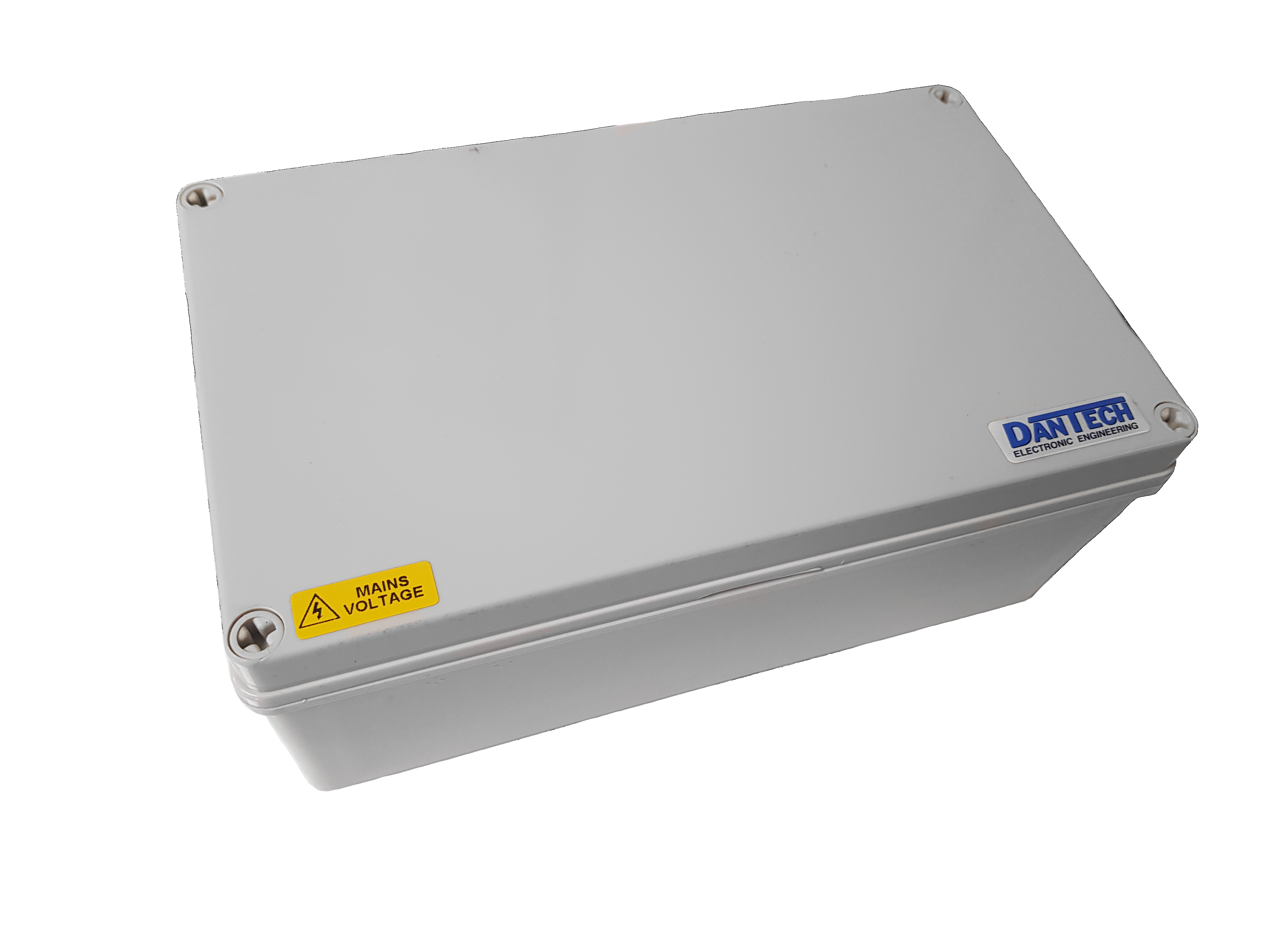

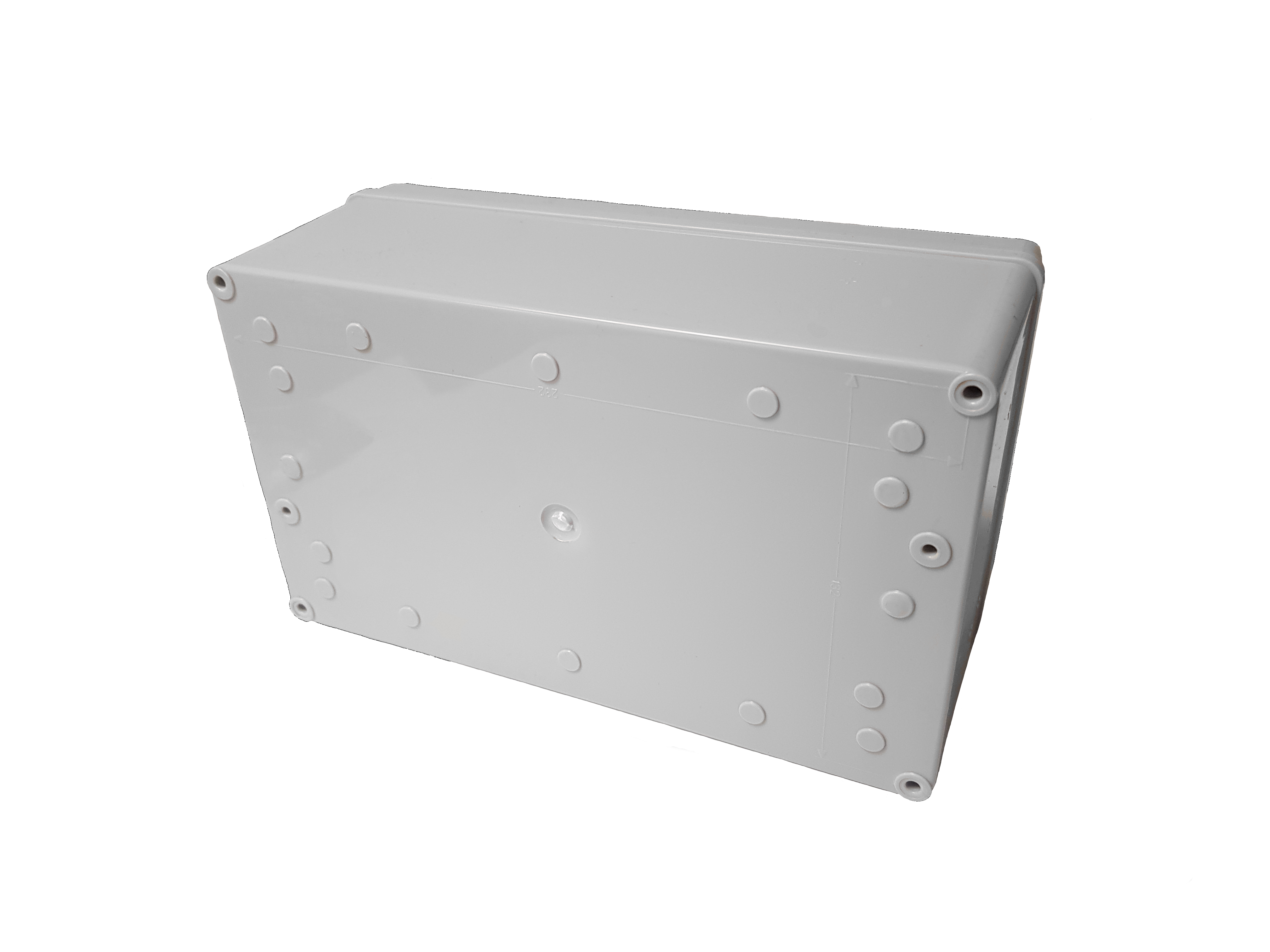

IP66 Rated weather-resistant enclosures
Precision-made power supplies within IP66 weather-resistant enclosures. Ideal for wall mounting outdoors or in industrial environments.
Includes a spares-bag
mounting kit
Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.
90V to 270V AC @ 47Hz to 63Hz
Designed to operate on standard mains power voltages world-wide this unit can accept a wide range mains-input of between 90V to 270V AC @ 47Hz to 63Hz.
