Multi-purpose 340 x 385 x 185mm mild steel enclosure

  • Mains on and Fault LED indicators
  • Mild steel 340 x 385 x 185mm enclosure
  • Stud mounting for optional PSU
  • Lid tamper & Louvred sides
  • White powder coating to RAL9016
  • Wall mountable
  • Made in Britain with 5 year warranty

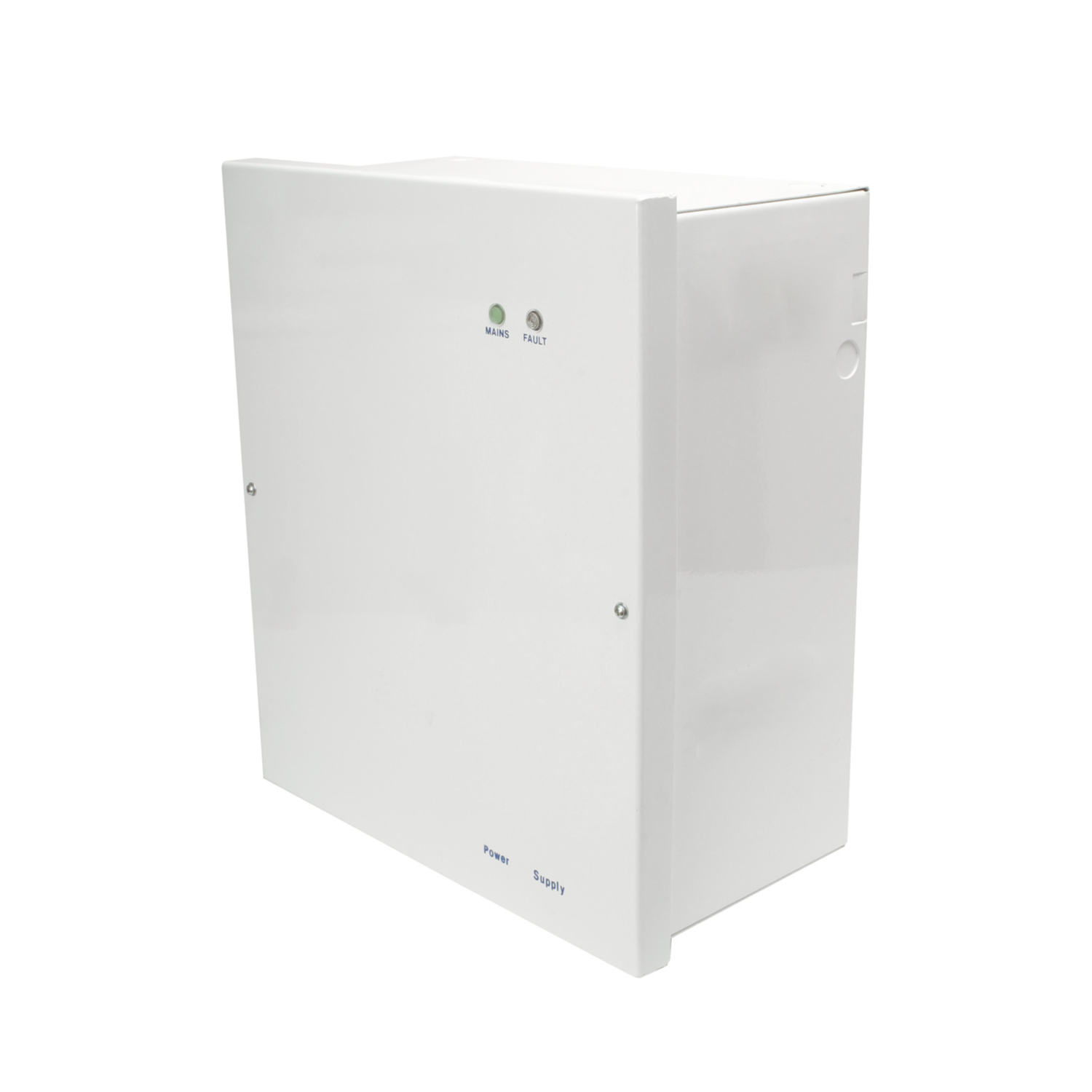

DA305: Multi-purpose enclosure

A large empty metal enclosure with a tamper switch that is also fitted with an indicator board that provides Mains on and Fault LED Indicators.

The DA370 & DA380 PSU's are ideal for installing within this metal enclosure; the enclosure is designed to house up to 2 x 24Ah VRLA batteries and is wall or floor mountable. An alternative use for this product is simply as a large battery enclosure.

Ordering information

Technical information

Download Data sheet

Environmental

Operating temperature -10°C to +60°C
Storage temperature -20°C to +70°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection IP20

Dimensions:

Product

Width340mm
Height385mm
Depth185mm
Weight< 7.0Kg
Enclosure material1.2mm Mild steel
FinishPowder coated RAL9016 White

Shipping packaging

Width350mm
Height400mm
Depth195mm
Weight *including product< 7.2Kg
Packaging materialCardboard

Ordering information

GTINPart codeDescription
DA305Multi-purpose 340 x 385 x 185mm mild steel enclosure

Available from all good distributors.
