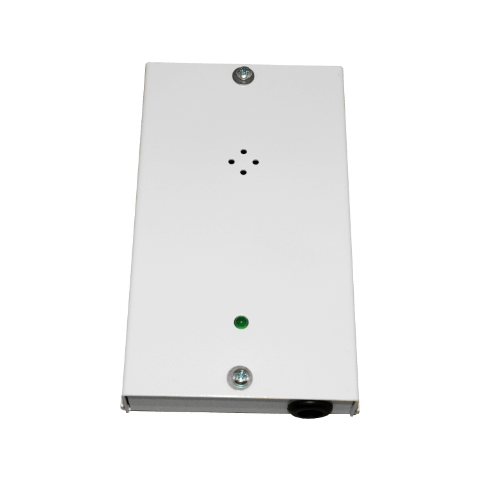

DA250: Zone shunt units
These are designed to switch out (shunt) an active security system circuit thus allowing controlled access to a secure area.
This prevents false alarms, as access to the secure area is only possible once the door is unlocked and the circuit is shunted. The shunted zone can only be switched back in if the alarm circuit is clear. An output is available to provide remote indication whilst the unit is shunted.
The DA250U can be switched by either our DA228, DA225 or in certain circumstances our DA223 door lock keep. Alternatively the DA250LS has a built in key switch and a red LED which illuminates whilst the key operated switch is in the shunted position.
- Metal cased enclosure
- On board key switch (DA250LS)
- Current consumption <30mA
- Alarm relay contact rating 30V DC 1A
- Shunt relay contact rating 30V DC 1A
- Input 2 x volt free C/C loops
- Sound level 85 dbA
- Tamper switch
