Dantech Electronic Engineering, powering security.

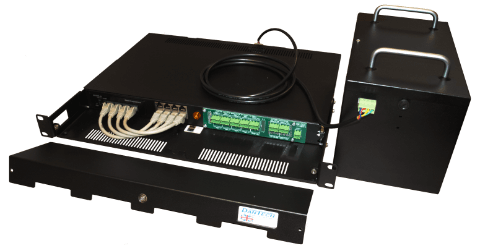

SecurePoE™ 7Ah MultispanUPS™
within a 1U 19" rack-mount security enclosure
Made in Britain
Description

A power over Ethernet Multispan power supply with secure enclosure and monitoring. Every SecurePoE unit complies with the IEEE 802.3:2012 standard (IEEE 802.3at/IEEE 802.3af). SecurePoE units will provide the full 30W of power to every port. All units are housed in secure tamper protected cases.

The PoE outputs have LED indication to show if a compatible device is connected and powered. In addition there are SPCO clean contacts for monitoring the power status of each output.

PoE Multispan devices combine the reliability of a midspan with the ease of an endspan unit, while adding security and installation flexibility.

The pre-patched network switch allows one data connection (e.g. from network) to be connected to up to 4 PoE powered devices.

Multispan units can be located 100 meters away from existing network infrastructure and attached devices can be a further 100 meters, giving 200m connectivity potential.

Features
  • Integrated 5-Port Gigabit network switch for 10/100/1000Mbs
  • PoE+ power injector with 4 load output ports
  • 30W of load power availability per port, to IEEE 802.3:2012
  • 90-270V AC, 47-63Hz universal mains input
  • Ultra high efficiency operation - up to 96%
    (tested with 120W load)
  • Safe power supply design
  • System power status LED & monitoring contacts
  • Individual port power status LEDs and monitoring contacts
  • Monitoring relay contacts can be used for analogue or network interface
    (e.g. AVIs, alarm logs, device alarm inputs; or triggering ancillary equipment)
  • Innovative fast entry cable system
  • Additional cable entry knock-outs
  • Secure steel enclosure
  • Lid tamper switch
  • Automatic load class detection
  • Designed for ease of fitting and high reliability
Battery pack features
  • Customised Yuasa battery pack(s) included
  • Battery packs are remote and are supplied with plug-in lead
    (designed for shelf or floor mounting, while saving rack space)
  • Available with 1.2Ah, 7Ah & 10Ah battery pack capacities
  • Battery packs feature carry handles
  • Automatic battery low voltage deep discharge protection
  • Mains fail and low battery relay monitoring contacts
  • Guaranteed replacement battery pack availability
  • Battery maintains both PoE+ power and network switch
  • Four port versions use one battery pack (included)
  • Eight port versions use two battery packs (included)
    (use standby time figures for four port versions)
Estimated stand-by times
Output loadBattery capacity
1.2Ah7Ah10Ah
5WHours65 Hours100 Hours
12WHours30 Hours44 Hours
25W1.75 Hours14.5 Hours20 Hours
50W40 Minutes6.5 Hours9.5 Hours
75W23 MinutesHoursHours
100W14 Minutes2.75 HoursHours
Product code Description Data sheet Leaflet
DA1107-RM-4-G 1U Rack-mount 7Ah MultispanUPS 4 x 30W Gigabit PoE+ injector & 5-Port Gigabit switch PDF PDF
DA1007-RM-BATT Remote 7Ah VRLA Yuasa battery pack for DA1007-RM and DA1107-RM PDF PDF
*These units are available for same day despatch worldwide. Next day delivery available to mainland UK.
