19" Rack-mount SecurePoE Midspan 30W PoE injector

  • Midspan power injectors with 4 or 8 load ports
  • 30W of load power per port, to IEEE 802.3:2012
  • 90-270V AC, 47-63Hz universal mains-input
  • System power status LED & monitoring contacts
  • Individual port power status LEDs and monitoring contacts
  • Monitoring relay contacts can be used for analogue or network interface
  • Tamper-switched secure steel enclosure
  • Automatic load-class detection
  • Designed for ease of fitting and high reliability

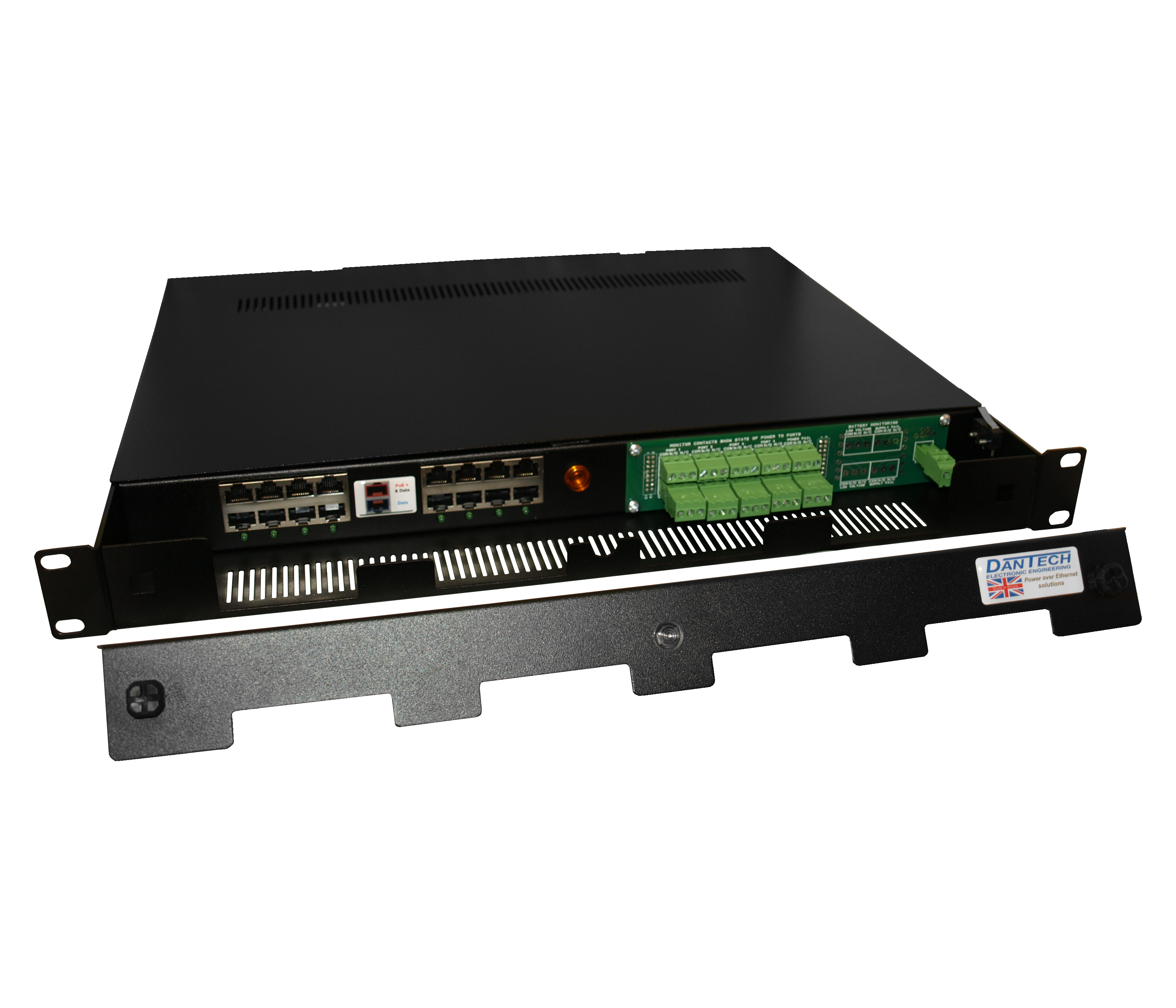

DA1000-RM: 19" Rack-mount SecurePoE Midspan 30W PoE injector

The DA1000-RM Midspan PoE injector is ideal for standard 19" rack-mount installation, using just 1U in height this unit can power up to eight devices with up to 30W each. With four or eight through-port models available, you can connect devices to be powered with or without a data connection.

Four & eight output versions are available. Each output has an RJ45 data port,(e.g. from the network switch) and an RJ45 load port for the PoE device, that outputs the data and power.

Outputs have LED indication to show if a compatible device is connected and powered. In addition there are SPCO clean contacts for monitoring the power status of each output. The unit also has power on LED indication and SPCO clean contacts to signal power failure.

Ordering information

Technical information

Download Data sheet

Ordering information

GTINPart codeDescription
DA1000-RM-419" rack-mount SecurePoE midspan 4 x 30W PoE+ injector
DA1000-RM-819" rack-mount SecurePoE midspan 8 x 30W PoE+ injector
DA1000-RM-4-G19" rack-mount SecurePoE midspan 4 x 30W Gigabit PoE+ injector
DA1000-RM-8-G19" rack-mount SecurePoE midspan 8 x 30W Gigabit PoE+ injector

Other models

GTINPart codeDescription
DA1000-EX-1IP66 SecurePoE midspan 1 x 30W PoE+ injector
DA1000-EX-2IP66 SecurePoE midspan 2 x 30W PoE+ injector
DA1000-EX-4IP66 SecurePoE midspan 4 x 30W PoE+ injector
DA1000-EX-1-GIP66 SecurePoE midspan 1 x 30W Gigabit PoE+ injector
DA1000-EX-2-GIP66 SecurePoE midspan 2 x 30W Gigabit PoE+ injector
DA1000-EX-4-GIP66 SecurePoE midspan 4 x 30W Gigabit PoE+ injector
DA1000-IN-1Indoor SecurePoE midspan 1 x 30W PoE+ injector
DA1000-IN-2Indoor SecurePoE midspan 2 x 30W PoE+ injector
DA1000-IN-4Indoor SecurePoE midspan 4 x 30W PoE+ injector
DA1000-IN-1-GIndoor SecurePoE midspan 1 x 30W Gigabit PoE+ injector
DA1000-IN-2-GIndoor SecurePoE midspan 2 x 30W Gigabit PoE+ injector
DA1000-IN-4-GIndoor SecurePoE midspan 4 x 30W Gigabit PoE+ injector

Available from all good distributors.
